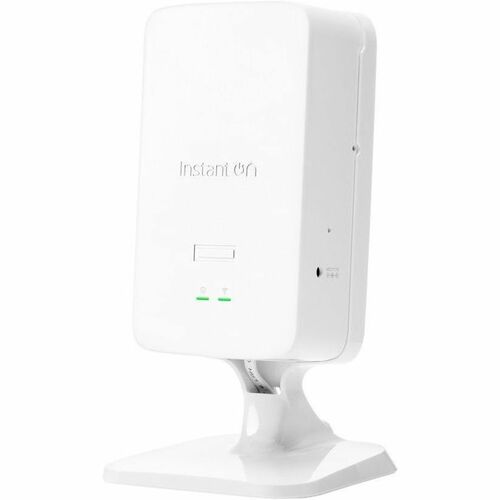

HPE NW ION AP22D US AP 5PK

HPE Instant On AP22D Wi-Fi 6 IEEE 802.11ax 1.70 Gbit/s Wireless Access Point

The HPE Networking Instant On Access Points AP22D is an SMB-focused Wi-Fi Certified 6 access point that provides reliable wired and wireless connectivity over a 2.5GbE uplink port with a minimal device footprint. This access point can reduce device clutter while powering downlink devices such as IP Phones or receipt printers with 2x 15W of PoE(802.3af) and supporting 75+ wireless devices over 802.11ax Wi-Fi 6 with an aggregate wireless throughput of 1.7Gbps. Easily manage the Instant On AP22D with the Instant On mobile app or portal to create guest and employee networks, govern access control lists, and set POE schedules to customize power use. Make the most of your limited space in your small business by mounting the Instant On AP22D to a desk or wall with included mounting kits.

Features | 802.11ax Wi-Fi Certified 6

HPE Networking Instant On Access Points AP22D features Orthogonal Frequency-Division Multiple Access (OFDMA) which allows access points to handle multiple Wi-Fi 6 capable clients on each channel simultaneously and improve efficiency by boosting overall capacity, reducing latency.

Target Wake Time (TWT) - Ideal for IoT devices that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This reduces power consumption and can extend the battery life of clients.

Multi-User, Multiple Input, Multiple Output (MU-MIMO) - Allows the access point to simultaneously serve multiple clients (Wi-Fi 5 and Wi-Fi 6).

2.5Gigabit Ethernet Uplink Port

HPE Networking Instant On Access Points AP22D offers increased available bandwidth to allow for more traffic over Wi-Fi 6 or with the downlink ethernet ports.

Use existing cabling infrastructure like Cat5 or Cat6(a) cables and avoid the additional cost of running new cables across your facility.

Future-proof your environment with the added bandwidth capacity to handle the ever-growing world of cloud-based applications.

Four Downlink 1 Gigabit Ethernet Ports

Connect up to four copper RJ-45 devices to the HPE Networking Instant On Access Points AP22D without the need for an additional switch to manage.

Downlink ports can power two 15W PoE (802.3af) devices without the intervention of a bulky POE-Injector.

• Wireless Access Point is the single answer to all your wireless connectivity needs


• 1.70 Gbit/s wireless transmission speed is ideal for fast data transfer with maximum reliability


• IEEE 802.11ax wireless LAN standard ensures trouble-free and convenient connectivity


• Gigabit Ethernet port for ultra-fast wired network speeds


• Wall Mountable form factor offers comfortable usage for a longer duration
